Chocolate Fold Wrapping Machine BOPP Paper With Automatic Grade

Chocolate Fold Wrapping Machine BOPP Paper With Automatic Grade
Chocolate Fold Wrapping Machine BOPP Paper With Automatic Grade Chocolate Fold Wrapping Machine BOPP Paper With Automatic Grade Chocolate Fold Wrapping Machine BOPP Paper With Automatic Grade Chocolate Fold Wrapping Machine BOPP Paper With Automatic Grade Chocolate Fold Wrapping Machine BOPP Paper With Automatic Grade Chocolate Fold Wrapping Machine BOPP Paper With Automatic Grade

Large Image :  Chocolate Fold Wrapping Machine BOPP Paper With Automatic Grade

Product Details:
Place of Origin: Sichuan, China
Brand Name: Shengli
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $50,000.00/plants >=1 plants
Packaging Details: Wooden case package as the international trade package
Supply Ability: 10 Plant/Plants per Month
Contact Now

Chocolate Fold Wrapping Machine BOPP Paper With Automatic Grade

Description
Type: Multi-Function Packaging Machine Production Capacity: 200-300pcs/min
Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Food Shop, Food & Beverage Shops Weight (KG): 1800
Showroom Location: None Condition: New
Function: Wrapping, Gluing Application: Food, Medical, Chemical
Packaging Type: Film, Foil Packaging Material: Paper, Plastic
Automatic Grade: Automatic Driven Type: Electric
Voltage: 380V 50Hz 3-P Dimension(L*W*H): L*W*H:2960*1560*2150mm
Warranty: 1 Year Key Selling Points: High-accuracy
Machinery Test Report: Not Available Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Motor, PLC, Gear, Bearing, Gearbox
PLC Controller: Siemens Machine Type: Horizontal Packing Machine
Wrapping Material: BOPP/Plastic Film Chocolate Size: L 10-80;W 4-45;H 4-35(mm)
Wrapping Speed: 200-300 Pic/min Size Of Big Chocolate: Custom-made
Total Power: 5 KW Air Supply: 0.6MPa
Power Supply: 380V/220V 50HZ 3P Material: 304 Stainless Steel Material
Marketing Type: Hot Product 2019 Port: Shanghai

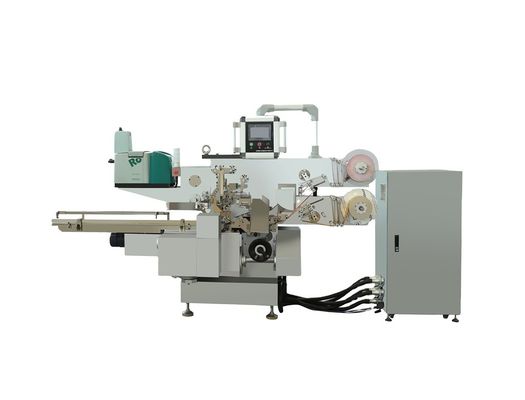

Full Automatic Chocolate Folded Single BOPP Layer Wrapping machine Solution

Chocolate Fold Wrapping Machine BOPP Paper With Automatic Grade 0

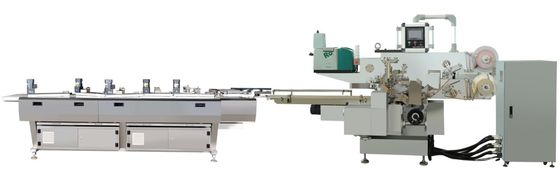

Installation Layout

Chocolate Fold Wrapping Machine BOPP Paper With Automatic Grade 1

Main Instruction



This complete machine is a fully automatic high-speed wrapping machine, packing speed is 280pcs/min, which uses an automatic and famous brand Simens PLC controller to convey and pack foods,  such as chocolate, praline chocolate, compress tea block,  and other food which is not easily be handled or fragile.

The complete machine consist of one set SL-SBZB450D Folded Packing Machine and one set SL-SBZL500 Arranging and Feeding Machine.



Specification

Item Name Part Details Remark
SL-SBZB450D Fold Packing Machine Machine body Cast Iron
    Frock Clamp Alloy Steel
    Contact Area SUS and PU
    Driving Motor Wannan(China) Support machine working
    Servo Motor Panasonic(Japan) Support wrapping paper working
    Driving Motor Dehuo(China)  Support the conveyor machine
    Touch Screen Omron(Japan)
    Precision Potentiometer  Omron(Japan)
    Rotary Encoder  Omron(Japan)
    Material Sensor  Omron(Japan)
    Color Mark Sensor    Omron(Japan)
    Paper Feeder Sensor    Omron(Japan)
    Oversize Material Sensor    Omron(Japan)

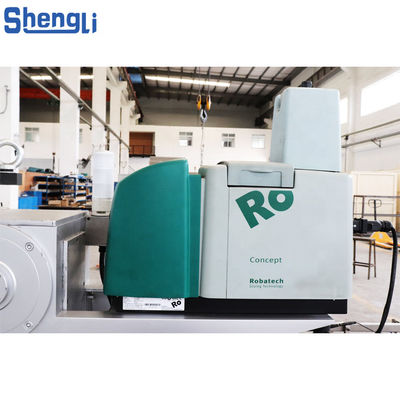

    Melting Gum Device    Omron(Japan)
 SL-SBZL500 Conveyor System Arranging Sections  Five
    Belt  SIEGLING(Germany)
    Frame  SUS304
    Servo Motor  Taibang
    Servo Motor Control  Schneider(Germany)
   Electric Cabinet PLC Controller    Siemens
    Frequency Converter  Delta(Taiwan)
    Circuit Breaker  Schneider(Germany)
    Solid Relay Omron(Japan)
    Switch Power Supply  Omron(Japan)



Chocolate Samples

Chocolate Fold Wrapping Machine BOPP Paper With Automatic Grade 2 Chocolate Fold Wrapping Machine BOPP Paper With Automatic Grade 3



Company Introduction

Chengdu ShengLi Mechanical Equipment Co., LTD is one company which are professional in the design, development, production, and sales of food processing and packing machinery and specializing in providing automatic food processing solutions and customer services for decades (Chengdu WealthRise Complete Mechanical Engineering Co., Ltd is a wholly foreign-owned enterprise founded in 2004 ).

 Chocolate Fold Wrapping Machine BOPP Paper With Automatic Grade 4



Package and Shipping



Package Standard: Seaworthy Wooden Case

Shipping: By Sea

Dimension and Weight(just for reference )

Gross weight

Wrapping machine

1800KG

Total 2480KG

Feeding Conveyor

680KG

Dimensions of machine  (L*W*H)

Wrapping machine

2970*1520*2200mm

Total 14m³

Feeding Conveyor

2870*960*1220mm

600*860*1220mm



Chocolate Fold Wrapping Machine BOPP Paper With Automatic Grade 5

After-Sales

1. One year guarantee for the quality, if components are damaged naturally, we will replace them freely. If manually damaged, the client's responsible for the costs.

2. Provide the complete installation, debugging, technology support and staff training, support online service.
