Paper Packaging Automatic Chocolate Bar Wrapping Machine OEM

Certification
China Chengdu Shengli Machinery Equipment Co., Ltd. certification
I'm Online Chat Now

Paper Packaging Automatic Chocolate Bar Wrapping Machine OEM

Paper Packaging Automatic Chocolate Bar Wrapping Machine OEM
Paper Packaging Automatic Chocolate Bar Wrapping Machine OEM Paper Packaging Automatic Chocolate Bar Wrapping Machine OEM Paper Packaging Automatic Chocolate Bar Wrapping Machine OEM Paper Packaging Automatic Chocolate Bar Wrapping Machine OEM Paper Packaging Automatic Chocolate Bar Wrapping Machine OEM Paper Packaging Automatic Chocolate Bar Wrapping Machine OEM

Large Image :  Paper Packaging Automatic Chocolate Bar Wrapping Machine OEM

Product Details:
Place of Origin: Sichuan, China
Brand Name: SL
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $48,000.00/sets >=1 sets
Packaging Details: Wooden case package as an international trade package
Supply Ability: 5 Set/Sets per Month

Paper Packaging Automatic Chocolate Bar Wrapping Machine OEM

Description
Type: Wrapping Machine Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Food & Beverage Shops
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service Local Service Location: None
Showroom Location: None Condition: New
Application: Food, Medical, Chemical, Machinery & Hardware Packaging Type: Film, Foil, Fold/Wrapping
Packaging Material: Paper Automatic Grade: Automatic
Driven Type: Electric Voltage: 380 V
Dimension(L*W*H): 2960*1560*2150 Mm Weight: 2600 KG
After-sales Service Provided: Online Support, Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service Warranty: 1 Year
Key Selling Points: Long Service Life Marketing Type: Ordinary Product
Machinery Test Report: Not Available Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: PLC, Motor, Engine, Bearing, Pump
Machine Type: Automatic Horizontal Wrapping Machine Wrapping Speed: 260 Ppm
Wrapping Type: Fold/ Double Layer Wrapper Conveyor: SIEGLING Belt
Wrapping Size(L*W*H): 10-80*4-45*4-35 MM Control System: PLC+Touch Screen
Photoeletric Eye: SICK PLC: OMRON
Melting Gum Machine: Robatech Port: Shanghai

Automatic high-speed chocolate bar wrapping machine small chocolate fold wrapping machine

Product Description

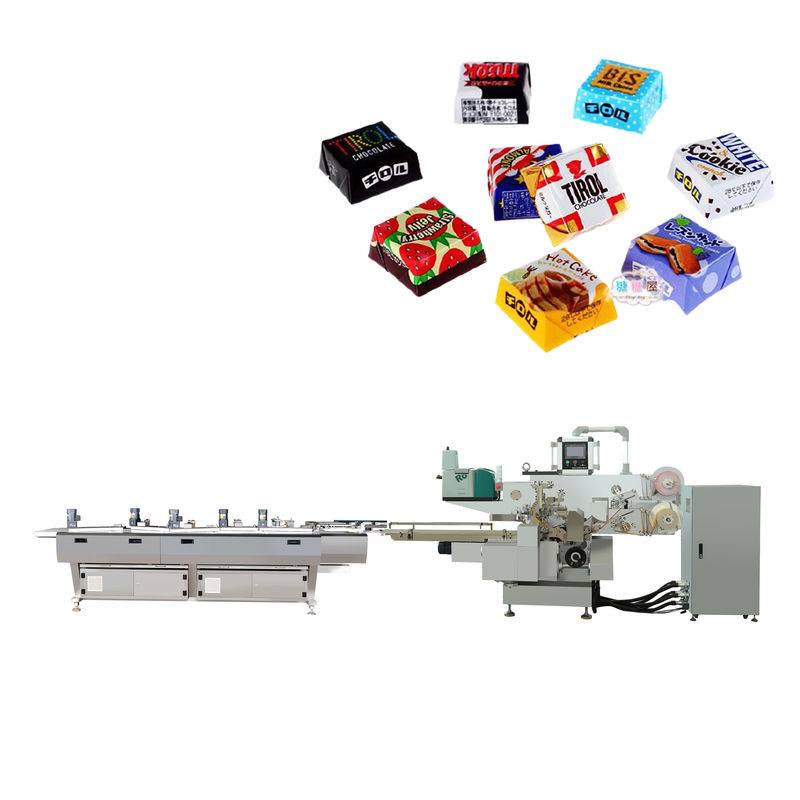

 Paper Packaging Automatic Chocolate Bar Wrapping Machine OEM 0

The SL-SBZB450D series chocolate WRAPPING MACHINE is suitable for wrapping square and rectangular chocolate. The wrapping method is folding and envelope wrapping, which can realize double-layer paper and single-layer paper wrapping at the same time. By replacing some parts, it is possible to wrap special shape chocolate"SL-SBZB450S FOIL WRAPPING MACHINE".





Main Packing Machine

Specification

and

Technical

Parameters

Product Name

Folding wrapping machine

Model No

SL-SBZB450D

Packing Speed

260ppm

Chocolate size(L*W*H)

Normal(mm)

10-80*4-45*4-35

customization (mm)



Total power

 5 KW

Power supply

380V/220V 50HZ 3P

Air supply

0.6Mpa

Qualification rate of packaging

>=97%

Air displacement

0.6 m³/min



Wrapper

Wrapper width

80-130mm/200mm

Wrapper material

Foil/PET/Film and so on

Arranging and Feeding Machine Technical Specification and Main Components

Total Power

2 KW

Compressed Air

0.6Mpa



Frequency Converter



Taiwan(Delta)

Gross weight

Packing machine

1600kG

Feeding Conveyor

1000KG

Dimensions

of case

(L*W*H)

Packing machine

2960*1560*2150mm*1



Feeding Conveyor

2360*860*1250mm*1

1560*860*1260mm*2

Payment method

Pay in advance30%,Payment before delivery70%

The period for dispatch

60 days after receipt of deposit

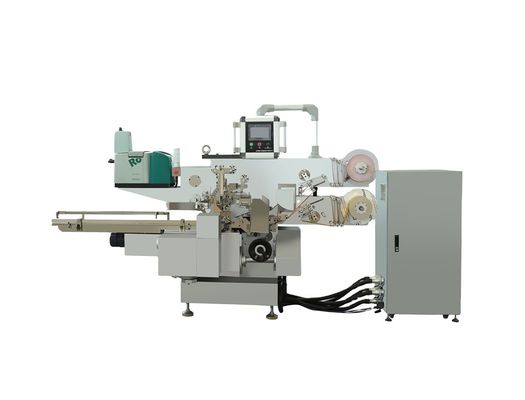

 Paper Packaging Automatic Chocolate Bar Wrapping Machine OEM 1

Advantages
  •  Adopt PLC &  program software, easy operating and setting. Auto-human touch screen and three color warning light, self-failure diagnosis, clear failure display.
  • Fully automatic program-controlled with servo motors, highly stable and reliable
  • Flexible in color sensor settings, paper feeding self-tracking, and correction during packing, providing a consistent packing style and a good product appearance.
  • Self-protection for abnormal product
  • Online product feeding status monitoring-only feeding wrapping paper when the product arrives desired position, which keeps paper consumption at an extremely low level.
  • Removable truckle with the machine, height can be adjusted.
  • Large space switch power supply, an electrical device’s brand can be chosen.
Specification



Folded Wrapping Machine Main Components

  • Servo motor for feeding paper         Japanese(Omron )
  • Touch screen                                    Japanese(Omron)
  • Frequency converter                        Taiwan(Delta)
  • Candy sensor                                   Germany(SICK)
  • Color code sensor                            Germany(SICK)
  •  Paper broken proximity switch       Germany(SICK)
  •  Oversize candy proximity switch   Germany(SICK)
  •  Origin proximity switch                 Germany(SICK)
  •  Encoder                                          Japanese(Omron)
  • Solid relay                                       Japanese(Omron)
  •  Switch power supply                     Japanese(Omron)
  • Precision potentiometer                  Japanese(Omron)
  • RO melting gum machine               Swiss(Robatech)
  • PLC                                                 Japanese(Omron)
Company Introduction

Chengdu ShengLi Mechanical Equipment Co., LTD is one company which are professional in the design, development, production, and sales of food processing and packing machinery and specializing in providing automatic food processing solutions and customer services for decades (Chengdu WealthRise Complete Mechanical Engineering Co., Ltd is a wholly foreign-owned enterprise founded in 2004 ).

Paper Packaging Automatic Chocolate Bar Wrapping Machine OEM 2

Related Products
CHOCOLATE CANDY SINGLE TWIST WRAPPING MACHINE CHOCOLATE FOLD WRAPPING MACHINE CHOCOLATE BALLS EGGS WRAPPING MACHINE CHOCOLATE CANDY DOUBLE TWIST WRAPPING MACHINE
Paper Packaging Automatic Chocolate Bar Wrapping Machine OEM 3 Paper Packaging Automatic Chocolate Bar Wrapping Machine OEM 4 Paper Packaging Automatic Chocolate Bar Wrapping Machine OEM 5 Paper Packaging Automatic Chocolate Bar Wrapping Machine OEM 6
FAQ

Q1: What’s the payment term you accept?
A1: By T/T or L/C.

Q2: What's your delivery time?
A2: Normal time is 60 days for a single packing machine, except for custom packing machines. And the actual time will vary from different order conditions.

Q3: How do you pack your machine for shipment?
A3: The machine is overwrapped with plastic film and then packed in fully closed standard wooden cases with the strong bottom pallet.

Q4: How to control your machine quality?
A4: Quality is our belief. We are always focused on Professional design and quality. High precision for parts processing. Use of quality raw material. Use of international brand electrical components.Assembly as per technical standard. Performing trial running and pre-shipment inspection.

Q5: Which countries have you ever exported your machines to?
A5: Malaysia,  Belgium, Korea, Russia, Hungary,  USA(California), Mexico, India,  Turkey, Tajikistan, Uzbekistan, Ukraine, Vietnam, Ecuador, Algeria, California, and Ukraine.

Q6: Why choose us?
A6: (1) Quality machine:
The beautiful outer shape and rational configuration.
High-quality material and renown international brand electrical components.
Advanced control system with PLC, HMI, and Servo.
Simple and easy debugging and operation.
Strong functionality, stable performance and easy maintenance.
High cost-effective performance.
(2)Technical service:
OEM manufacturing. Free on-site technical training.
Optimal customized solution.
Quick response to the user’s query.
Highly efficient and satisfied after-sales service.

Q7: What’s the language used for the operating system?
A7: English is used as an operation control language.

Q8: What’s the warranty period?
A8: 12 months after shipment.

Q9: What about after-sales service?
A9: When necessary, we will send our technician to the customer’s factory for installing, debugging and operating the machines, as well as free technical training service. But, our customer shall bear the service cost for visa, round-trip ticket, meal, hotel and a daily allowance of usd50.
