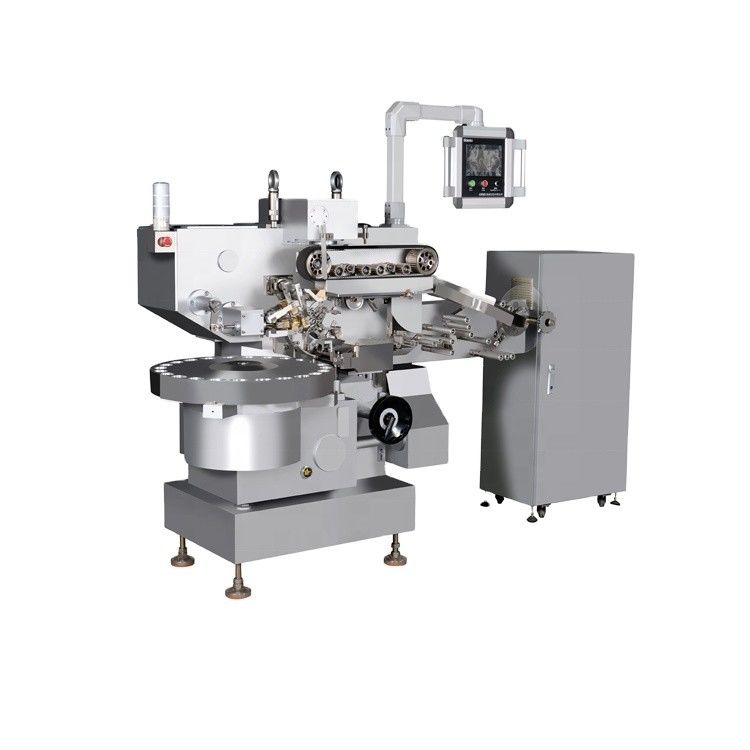

Food Hot Chocolate Bombs Foil Wrapping Machine with Photoelectric Eye Tracking System

Food Hot Chocolate Bombs Foil Wrapping Machine with Photoelectric Eye Tracking System
Food Hot Chocolate Bombs Foil Wrapping Machine with Photoelectric Eye Tracking System Food Hot Chocolate Bombs Foil Wrapping Machine with Photoelectric Eye Tracking System Food Hot Chocolate Bombs Foil Wrapping Machine with Photoelectric Eye Tracking System Food Hot Chocolate Bombs Foil Wrapping Machine with Photoelectric Eye Tracking System Food Hot Chocolate Bombs Foil Wrapping Machine with Photoelectric Eye Tracking System Food Hot Chocolate Bombs Foil Wrapping Machine with Photoelectric Eye Tracking System

Large Image :  Food Hot Chocolate Bombs Foil Wrapping Machine with Photoelectric Eye Tracking System

Product Details:
Place of Origin: Sichuan, China
Brand Name: ShengLi
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $35,000.00/sets >=1 sets
Packaging Details: Wooden case package as the international trade package
Supply Ability: 4 Set/Sets per Month
Contact Now

Food Hot Chocolate Bombs Foil Wrapping Machine with Photoelectric Eye Tracking System

Description
Type: Packaging Line Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Food & Beverage Shops
Showroom Location: None Condition: New
Application: Food, Medical, Chemical Packaging Type: Film, Foil
Packaging Material: Paper Automatic Grade: Automatic
Driven Type: Electric Voltage: 380V/220V 50HZ,3-Phase
Dimension(L*W*H): L2960*W1560*H2150mm Weight: 1600 KG
Warranty: 1 Year Key Selling Points: Long Service Life
Machinery Test Report: Not Available Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Bearing, Pump, Gear, PLC, Gearbox
After-sales Service Provided: Engineers Available To Service Machinery Overseas Size Of Chocolate: Diameter 10-32mm
Air Supply: 0.6Mpa Qualification Rate Of Packaging: >=98%
Wrapper Materia: Foil/Film Material: 304 Stainless Steel
Applicable Chocolate: Ball, Oval, Egg Tracking System: Photoelectric Eye
Signalling System: Sensor SICK Capacity: 300-350ppm
Marketing Type: Hot Product 2019 Port: Shanghai

Product Description

Hot Chocolate Bombs Wrapping Machine

Product Application

SL-SBQS450 series wrapping machine is suitable for round, oval, football-chocolate, rugby-chocolate,  egg-shaped chocolate candy. This packing machine is equipped with a vibration hopper to transport materials to maximize space saving.  Replace  machine parts, Another chocolate size is available.

Food Hot Chocolate Bombs Foil Wrapping Machine with Photoelectric Eye Tracking System 0
Food Hot Chocolate Bombs Foil Wrapping Machine with Photoelectric Eye Tracking System 1
Food Hot Chocolate Bombs Foil Wrapping Machine with Photoelectric Eye Tracking System 2

Main Features

1) This chocolate ball packaging machine can be used to replace football chocolate, rugby chocolate, peanut-shaped chocolate, wine bottle shape chocolate, and egg-shaped chocolate by replacing sugar-type parts.

2) The smaller the size of the chocolate, the faster the packaging speed.

3) This packaging machine can be matched with the production equipment to realize fully automatic production and packaging. It can also be used without matching the production line, using manual feeding, and adopting semi-automatic packaging, which is suitable for factories with relatively small output.

Parameters
Packing Speed
300 ppm
Chocolate size
D:10-32 mm
Qualification rate of packaging
>=98%
Gross weight
1700KG
Detailed Images
Food Hot Chocolate Bombs Foil Wrapping Machine with Photoelectric Eye Tracking System 3

Machine Parts

Name: Wrapping paper holder

Material: Steel

Function: Transfer wrapping paper

Servo motor control, transfer wrapping paper.

Main Features

Name:  Photoelectric eye
Brand: SICK
Original: Germany
The color code of the induction wrapping paper transmits the signal to the PLC system, controls the size of the wrapping paper, cuts the wrapping paper.

Food Hot Chocolate Bombs Foil Wrapping Machine with Photoelectric Eye Tracking System 4
Food Hot Chocolate Bombs Foil Wrapping Machine with Photoelectric Eye Tracking System 5

Machine Parts

Name: Synchronous gear
Brand: Sl
Original: China
With a belt, transfer the wrapped chocolate candies to the sugar outlet.

Main Features

Name: Shake Hopper
Brand: SL
Original: China
Transfer the material to the shaking table.

Food Hot Chocolate Bombs Foil Wrapping Machine with Photoelectric Eye Tracking System 6
Our Service
Food Hot Chocolate Bombs Foil Wrapping Machine with Photoelectric Eye Tracking System 7

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

Food Hot Chocolate Bombs Foil Wrapping Machine with Photoelectric Eye Tracking System 8

After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Food Hot Chocolate Bombs Foil Wrapping Machine with Photoelectric Eye Tracking System 9
Packaging
Size
2960 * 1560* 2150 mm
1170*1170*750 mm
Weight
1.7T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
