PLC Servo Touch Screen Controlled Tablet Wrapping Machine for Chocolate Confectionery

PLC Servo Touch Screen Controlled Tablet Wrapping Machine for Chocolate Confectionery
PLC Servo Touch Screen Controlled Tablet Wrapping Machine for Chocolate Confectionery PLC Servo Touch Screen Controlled Tablet Wrapping Machine for Chocolate Confectionery PLC Servo Touch Screen Controlled Tablet Wrapping Machine for Chocolate Confectionery PLC Servo Touch Screen Controlled Tablet Wrapping Machine for Chocolate Confectionery PLC Servo Touch Screen Controlled Tablet Wrapping Machine for Chocolate Confectionery PLC Servo Touch Screen Controlled Tablet Wrapping Machine for Chocolate Confectionery

Large Image :  PLC Servo Touch Screen Controlled Tablet Wrapping Machine for Chocolate Confectionery

Product Details:
Place of Origin: Sichuan, China
Brand Name: SHENGLI
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $55,000.00/sets 1-2 sets
Packaging Details: Wooden case package as an international trade package.
Supply Ability: 10 Set/Sets per Month
Contact Now

PLC Servo Touch Screen Controlled Tablet Wrapping Machine for Chocolate Confectionery

Description
Type: Multi-Function Packaging Machine Production Capacity: 260 Pcs/min
Applicable Industries: Food & Beverage Factory Weight (KG): 1600
Showroom Location: None Condition: New
Function: Wrapping, Gluing Application: Food, Medical, Chemical, Candy/chocolate
Packaging Type: Film, Foil Packaging Material: Paper
Automatic Grade: Automatic Driven Type: Electric
Voltage: 380V 50Hz,3PH (Customized) Dimension(L*W*H): 2900*1500*2000mm
Warranty: 1 Year Key Selling Points: High-accuracy
Machinery Test Report: Not Available Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Motor, PLC, Gear, Bearing, Gearbox
Air Supply: 0.6Mpa Product Name: Horizontal Packing Machine
Control System: PLC+Servo+Touch Screen Main Function: Folding And Gluing
Packing Speed: 200-260 Pics/min Color: Silver
Packing Material: Foil/paper Automatiac Grade: Full Automatic
Product Size: 100*155*76(mm) Port: ShangHai / Shenzhen / Guangzhou

Our Advantages
How can we help you to make your chocolate/candy a success?
PLC Servo Touch Screen Controlled Tablet Wrapping Machine for Chocolate Confectionery 0
We specializing in the production of chocolate wrapping machines for more than 15 years.
And efforts to expand the scope of other applications, to meet the different needs of customers.

We take care of your confectionery and optimize your packaging.
Product Description

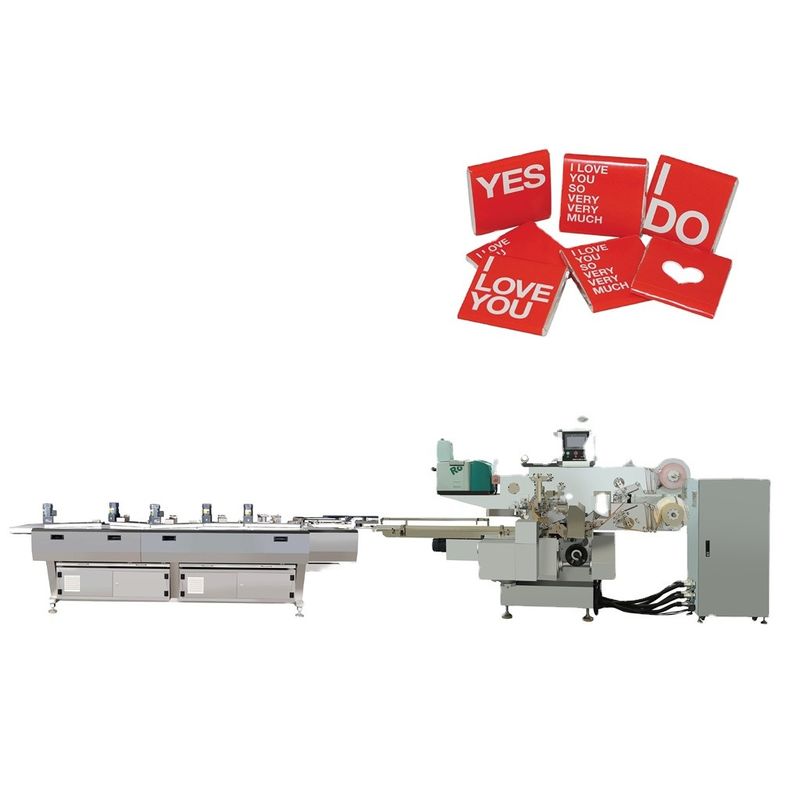

Automatic Horizontal Sealing Foil Fold Tablet Packing/Wrapping/Packaging Confectionery Machine for Chocolate
SL-SBZB450D series automatic wrapping machines are mainly used for the folding and enveloping style wrapping for chocolate / biscuit / candy etc. Compatible with variety sizes、shapes and wrapping materials.
Derivative models of this machine are suitable for brush pack products and tea products.
Meanwhile, optional label wrapping and double layers wrapping, wrapping styles are more diverse and flexible.
PLC Servo Touch Screen Controlled Tablet Wrapping Machine for Chocolate Confectionery 1
SPECIFICATIONS FOR CHOCOLATE WRAPPING MACHINE



CHOCOLATE WRAPPING MACHINE
Wrapping Speed
200-260  Pics/Min
Confectionery Size
L:10-80     W:4-45      H:4-35 (mm)
Wrapping Material
Foil / PET / Film and so on


Power of Mainframe
3.5 KW
Power of Conveyor
2.5KW
Compressed Air
0.6Mpa
PLC Servo Touch Screen Controlled Tablet Wrapping Machine for Chocolate Confectionery 2
PLC Servo Touch Screen Controlled Tablet Wrapping Machine for Chocolate Confectionery 3
PLC Servo Touch Screen Controlled Tablet Wrapping Machine for Chocolate Confectionery 4
Detailed Images
1.Adopt PLC,Servo Motor and HMI touch screen, highly integrated and intelligent, easy to operating.
2.Application high accuracy electrical components (electriacal sensor, frequency converter) and high strength mechanical transmission system,guaranteed stable,high-speed and smooth production.
3.Self-protection for abnormal product. and paper feed according to material signal
PLC Servo Touch Screen Controlled Tablet Wrapping Machine for Chocolate Confectionery 5
Robatech Gluing
Brand: Robatech ( Swiss )
Hot melt adhesives in different forms can be processed efficiently and gently. Cold seal with nice performance.
Photoelectric Sensor
Brand: Leuze (Germany)
Detect material and feedback to the PLC control system. Reliable self-protection against abnormal product.
PLC Servo Touch Screen Controlled Tablet Wrapping Machine for Chocolate Confectionery 6
PLC Servo Touch Screen Controlled Tablet Wrapping Machine for Chocolate Confectionery 7
Color Mark Sensor
Brand: Leuze (Germany)
Detect the color mark on the wrapping paper, meet accurate paper feed.
PLC Controller
Automatic control system,highly integrated and intelligent.
A variety of protection functions to ensure the production.
PLC Servo Touch Screen Controlled Tablet Wrapping Machine for Chocolate Confectionery 8
PLC Servo Touch Screen Controlled Tablet Wrapping Machine for Chocolate Confectionery 9
Mechanical System
Mechanical system with high precision and high strength ensures high speed and smooth production.
Perfect oil bath system, extend service life.
Wrapping  Mechanical Parts
High-precision and high-strength mechanical parts, under perfect mechanical adjustment, to achieve perfect packaging effect.
PLC Servo Touch Screen Controlled Tablet Wrapping Machine for Chocolate Confectionery 10
PLC Servo Touch Screen Controlled Tablet Wrapping Machine for Chocolate Confectionery 11
Touch Screen
Real-time display of device working status, which greatly improves the friendly and easy operation of the equipment.
Packing&Shipping
(1)Clean and wrap: All parts will be cleaned and wrapped by transperent film.
(2)Package standard: Wooden case package as an international trade package.
(3)Package supply and recycle: Supplier supply package according to customer requirements and recycle depend on customer.
PLC Servo Touch Screen Controlled Tablet Wrapping Machine for Chocolate Confectionery 12
PLC Servo Touch Screen Controlled Tablet Wrapping Machine for Chocolate Confectionery 13
PLC Servo Touch Screen Controlled Tablet Wrapping Machine for Chocolate Confectionery 14
PLC Servo Touch Screen Controlled Tablet Wrapping Machine for Chocolate Confectionery 15
Related Products
Exhibition
PLC Servo Touch Screen Controlled Tablet Wrapping Machine for Chocolate Confectionery 16
PLC Servo Touch Screen Controlled Tablet Wrapping Machine for Chocolate Confectionery 17
PLC Servo Touch Screen Controlled Tablet Wrapping Machine for Chocolate Confectionery 18
FAQ
Q1: How to find a CHOCOLATE PLATE packing machine suitable for my product?
Tell us about your product details and packing requirements.
1. What kind of product and what size it is?
2. What kind of packaged form?
3. You requirement for the machines.

Q2. How can we make sure about the machine quality after placing the order?At SHENGLI it all begins with immersing ourselves into
a project. The more we know, the better we can be at your service.
We have applied the techniques from ITALY to chocolate for more than fifteen years already. We still profit from the knowledge and
expertise of that time.
Before delivery, we will running-in a period of the machine to confirm all the parts is working properly.And the testing video
will send to you until you are sastisfied. We will setting all the parameters well.
And also you can arrange for quality checking by yourself or your agent in China.

Q3: Is engineer available to serve oversea?
Yes, we can send engineers to your factory but all the fee will be on buyers.
In order to save your cost, we will try our best to assist you to installaton the machine by video and online support.
Company Introduction
PLC Servo Touch Screen Controlled Tablet Wrapping Machine for Chocolate Confectionery 19
PLC Servo Touch Screen Controlled Tablet Wrapping Machine for Chocolate Confectionery 20
PLC Servo Touch Screen Controlled Tablet Wrapping Machine for Chocolate Confectionery 21
Chengdu ShengLi Machinery Equipment Co.,LTD
is professional in design,manufacture wrapping machines specialized for chocolate and candy.
30% of our business is based on building made-to-measure, new packaging machines. The other parts is based on adjustment existing machines. For this, we have the knowledge, the expertise and the people.We have all disciplines in-house: mechanical engineering,electricity, software, parts and (electronic) mounting. We know how to fulfill customer requirements.
